Uusi Lastausramppi - vuokrattavissa **RENTAL** Loading Ramp with with hydraulic tilting bridge - AZ RAMP - STAR- 8T. 8 ton capacity

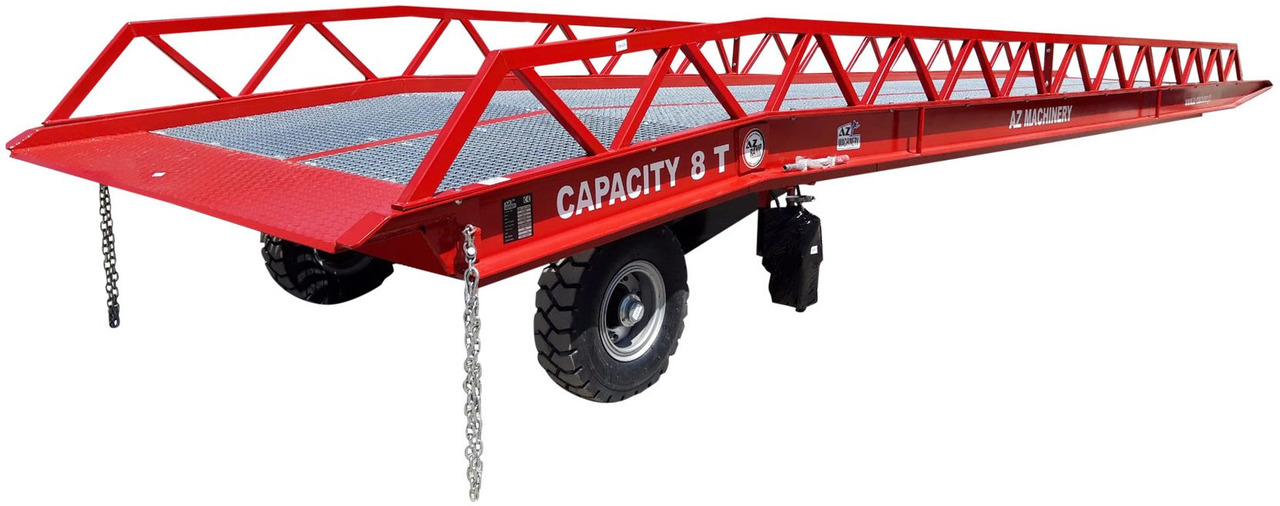

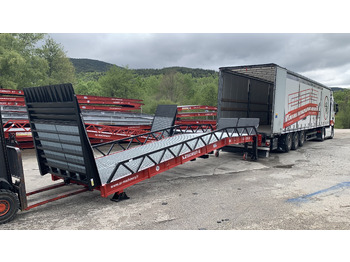

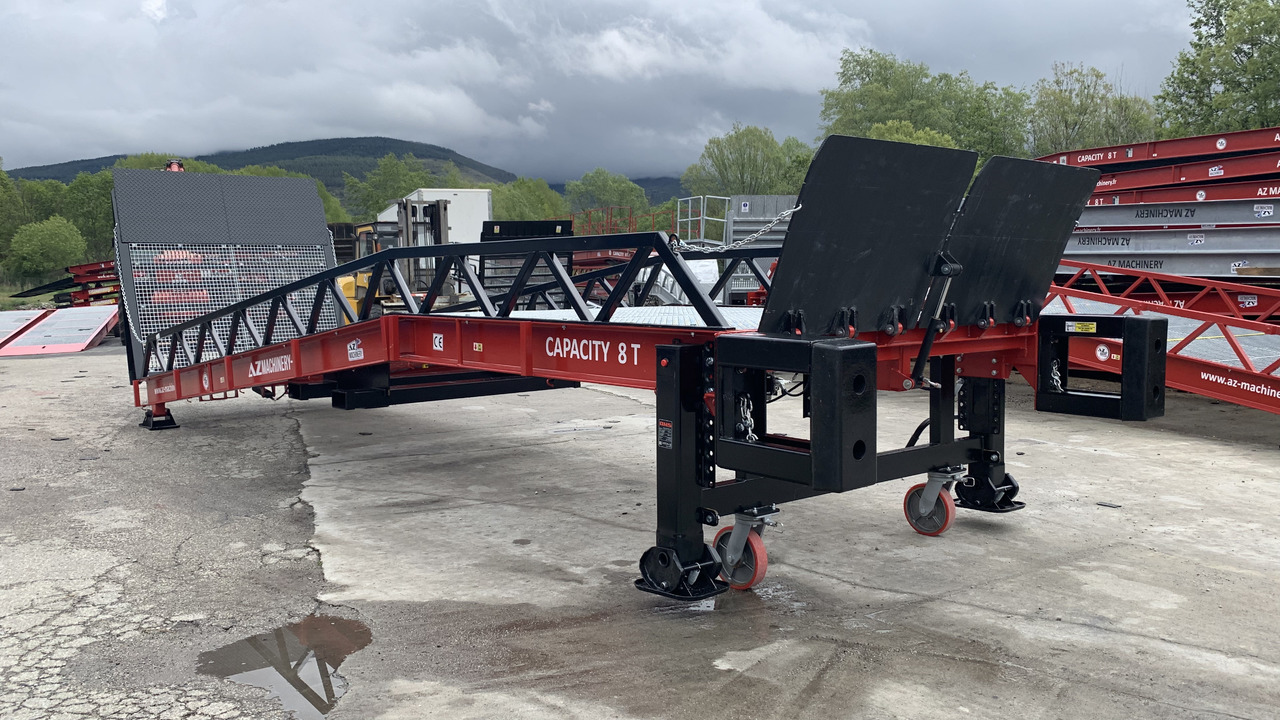

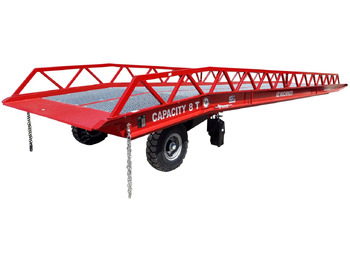

RENTAL Mobile loading ramp with hydraulic tilting bridge

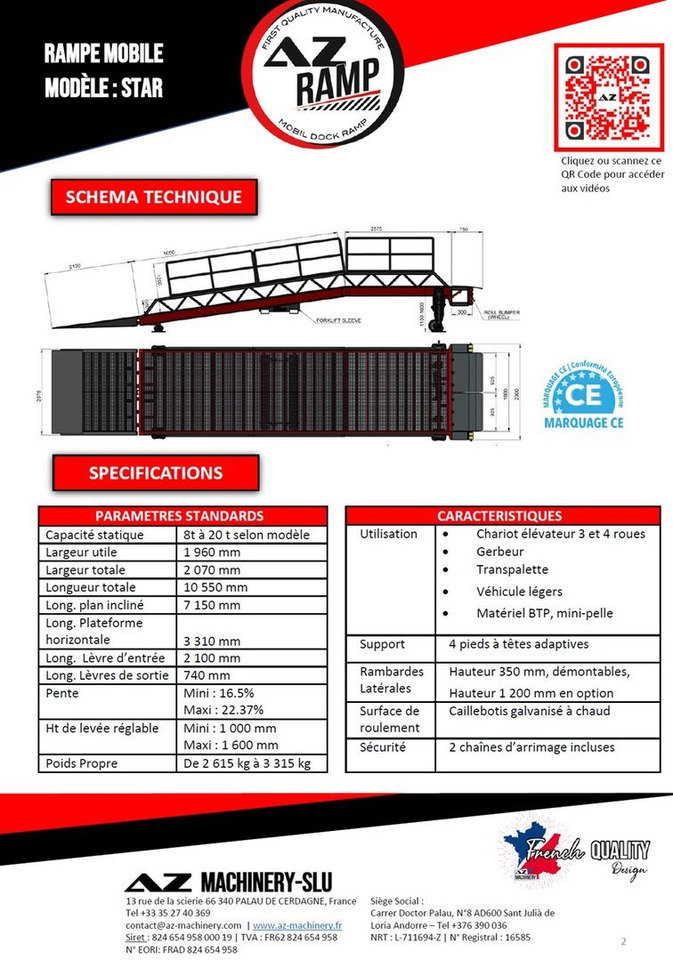

Brand: AZ RAMP - Type: STAR-OTC- 8T

Load capacity: 8 000 Kg

Dimensions: Total length deployed: 13.136 m

Overall Width: 2.07 m - Useful Width (Inside): 1.96 m

Length Inclined plane / Inclined part: 10.06 m

Length Flat-shaped horizontal: 3.076 m

Adjustable lifting height: Mini: 1.00 m - Max: 1.60 m

Slope: Min: 9.94 % - Max: 15.90 %

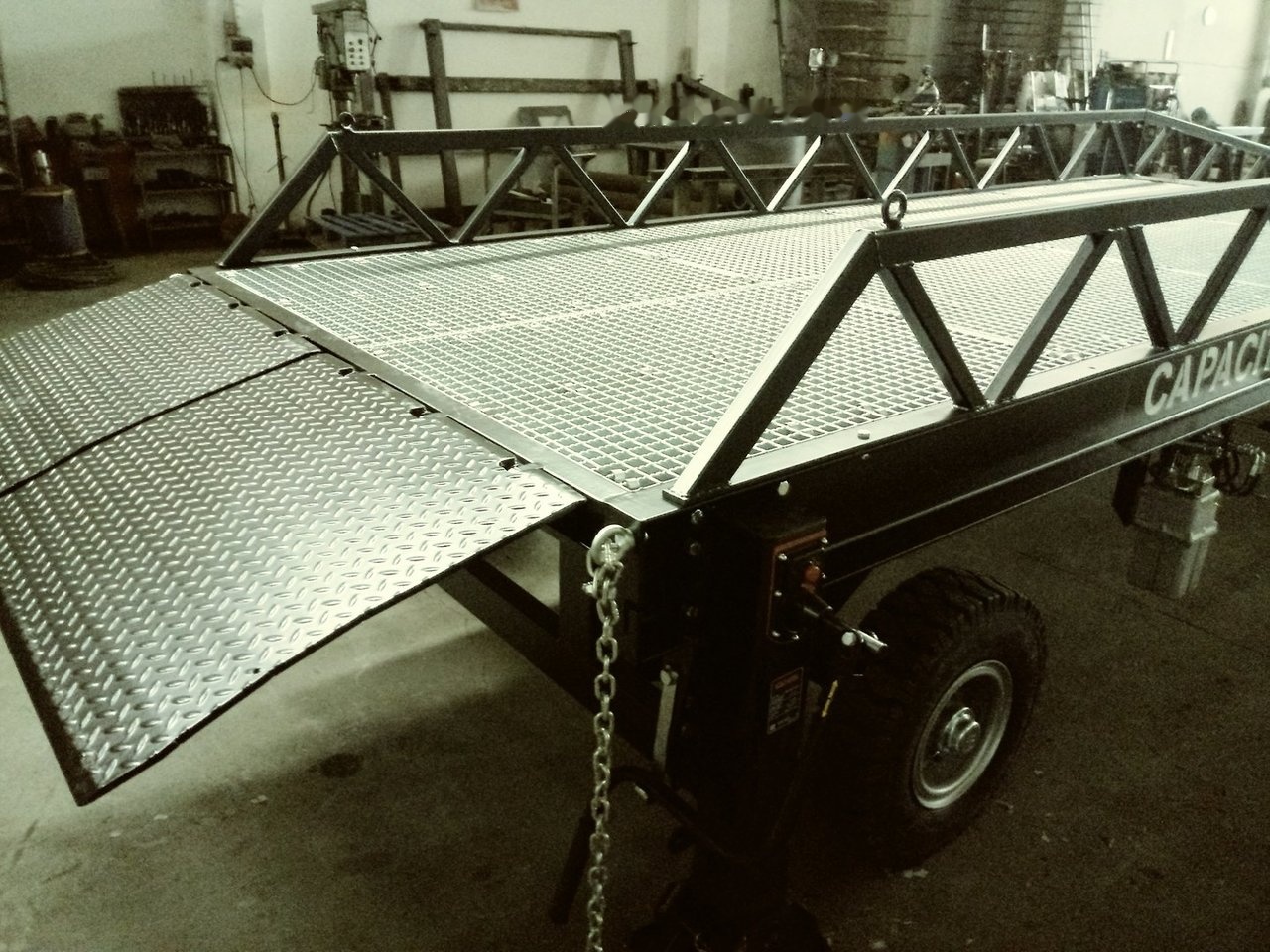

The + Product: Inlet tray lips hydraulically folded by hand pump.

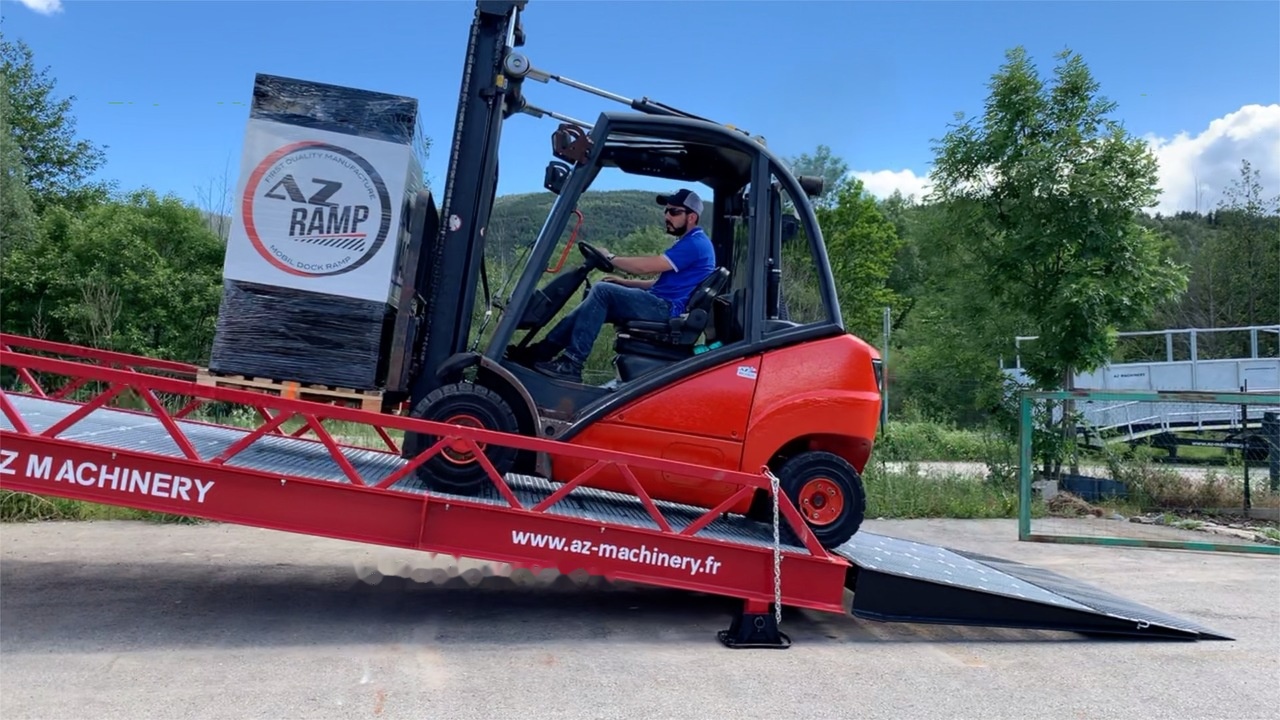

Descent and mounted wheels via hydraulic crank. Designed for use with 3 and 4 wheel forklift.

4 Support feet with adaptive heads . Supporting legs 50 ton capacity

Side safety rails height 1.20m, removable

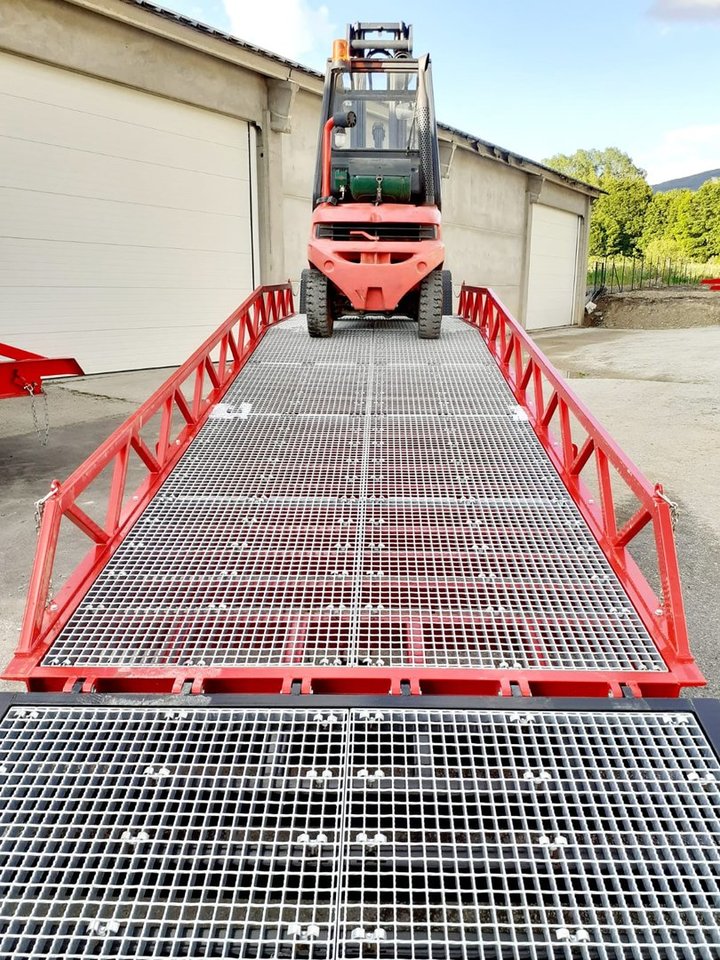

Anti-slip surface in hot galvanized grating 2 lashing chains included

dock with rolls bumpers

Applications: The STAR model is very appreciated by logisticians, industrialists, it also makes it possible to answer certain constraints of the centers of formation driver according to the new RECO R.489. Passing tests of Categories 1 and 3.

Rental Prices :

265 €HT / Day

545 €HT / Week

1 415 €HT / Month

1 145 €HT / Month ( for périod of 3 month minimum )
